CNC Machining of
Aluminum Door Hinge
for the Railroad Industry

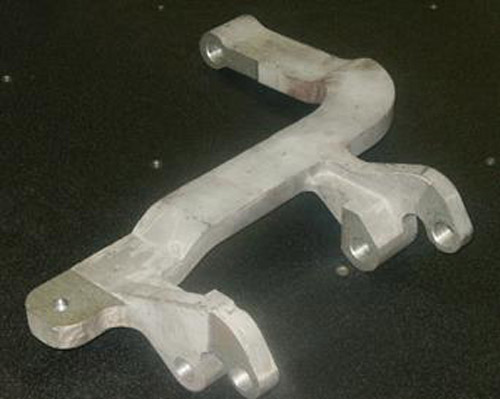

CNC Machining of Aluminum Door Hinge for the Railroad Industry

(Click on thumbnail to enlarge)

CNC Machining of Aluminum Door Hinge for the Railroad Industry
CNC Machining of Aluminum Door Hinge for the Railroad Industry

Bral Corporation was recently contracted to CNC machine a series of aluminum door hinges for a railroad industry client based in Pennsylvania. To begin this project, we first combined our advanced sand casting operations with our 4-axis VMC services, manufacturing each component to measure precisely 3 inches in length, 12 inches in width, and 6 inches in height. Each part also weighed 10 pounds.

After the parts were manufactured, we then performed our advanced finishing operations to complete each part. By successfully manufacturing each railcar AVC door hinge to meet our client's precise product specifications (based off a customer supplied, 2D CAD print), we now produce 10,000 aluminum door hinges for the railroad industry - delivering all products to our buyer's facility in Pennsylvania.

CNC Machining of Aluminum Door Hinge Project Highlights

Product Description   This Door Hinge is used within a railcar application
Capabilities Applied/Processes
Casting
  • Sand casting

CNC Machining
  • 4 Axis VMC



Overall Part Dimensions
Length: 3"
Width: 12"
Height: 6"
Material Used   Aluminum
  • 6061-T6
Estimated Part Weight   10 lbs
Industry for Use   Railroad
Quantity   28,000 Pieces Yearly
Delivery Location   Pennsylvania
Standards Met   Customer supplied print, 2D CAD Drawing
Product Name   Railcar AVC Door Hinge
